Web RTL

What is this?

/p3_display.png

What you see here and on my front page is a demo program that was converted to a hardware design and simulated using an FPGA simulator compiled to WASM so that it can run in the browser. This was meant to be a full dive through the abstractions of a computer, starting at the program level and going all the way down to the hardware logic level, but certain project limitations have left this project on hold for now.

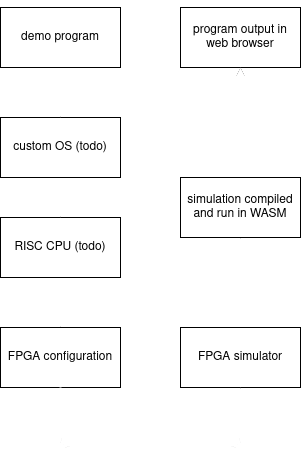

This is an overview of the full project structure.

/p3_diagram.png

But Why?

Most of my inspiration for working on this came from wanting to learn more about a certain set of languages, frameworks, and concepts. This was the result of me attempting to combine as many things I was interested in learning into one project. In terms of practical use-cases there are likely very few.

Most popular FPGA simulators use higher-level hardware descriptions written in an HDL like VHDL or Verilog (or even higher like Clash and Chisel) and compile it to a form that enables fast threaded execution without the advantages fully parallelized hardware has. An obvious example of this can be seen in the simulator built into Clash, a higher-level HDL that acts more like a library on top of Haskell and the HDL I used when writing hardware descriptions for this project (praise the Monad!). Instead of compiling Clash into fully-parallelized Verilog code, the simulator just runs the high-level functions (map, fold, etc) in the same way that it would if it was a regular Haskell program. These simulators can't compete against FPGAs for fully-parallelizable tasks, but do fairly well outside of that.

The simulator I wrote uses a lower-level BLIF specification of the hardware design, where high-level logic from the HDL has been converted to only lookup tables (LUTs) and registers for handling signals as they pass through the circuit. This is close to the same configuration used when programming an FPGA, missing only the planning for where each element should go and how each should be connected (place and route). For the time being I implemented the placement and routing as a simple topological sorting of each element by their signal dependencies. This is very slow compared to existing simulators, as each signal now has to be processed individually. Benchmarking this demo showed an average 30x drop in performance over the Clash simulator, which is quite slow itself compared to more popular simulators like Verilator. I have plans in the future to transfer the workload onto the GPU when web GPU support is more widespread, which should improve performance significantly.

Implementation

The parallax checkboard effect

The parallax checkerboard effect is a hardware description written in Clash that was based on part of HellMood's award-winning 256 byte demo memories. I took the effects of the original x86 assembly and converted them to a hardware description.

This is the assembly code for the demo.

mov cx,bp      ; set inital point to time
mov bx,-16     ; limit to 16 iterations
fx3L:
add cx,di      ; offset point by screenpointer
mov ax,819     ; magic, related to Rrrola constant
imul cx        ; get X',Y' in DX
               ; multiplies cx by ax, stores result in DX:AX
ror dx,1       ; set carry flag on "hit"
               ; rotates 17 bits in dx, including carry (wrapping)
inc bx         ; increment iteration count
ja fx3L        ; loop until "hit" or "iter=max" (16 times)
               ; CF == 0 and ZF == 0 for this to trigger
               ; so arg == 0 or carry == 1 to stop looping
lea ax,[bx+31] ; map value to standard gray scale

And this is the Clash HDL for generating the same demo as a hardware design.

palette i
  | i ==    0   = 0xFF000000
  | i ==    1   = 0xFF101010
  | i ==    2   = 0xFF202020
  | i ==    3   = 0xFF353535
  | i ==    4   = 0xFF454545
  | i ==    5   = 0xFF555555
  | i ==    6   = 0xFF656565
  | i ==    7   = 0xFF757575
  | i ==    8   = 0xFF8A8A8A
  | i ==    9   = 0xFF9A9A9A
  | i ==   10   = 0xFFAAAAAA
  | i ==   11   = 0xFFBABABA
  | i ==   12   = 0xFFCACACA
  | i ==   13   = 0xFFDFDFDF
  | i ==   14   = 0xFFEFEFEF
  | otherwise   = 0xFFFFFFFF :: Unsigned 32

rayCast r =
  hit
  where
    rrrola = 819 :: BitVector 16
    dxax = r `mul` rrrola
    hit = testBit dxax 16

prlx di c =
  color
  where
    r = generate d16 (+di) c
    a = map rayCast r
    color = palette (fromMaybe 15 (elemIndex True a))


prlxDemo =
  pixel
  where
    v = vga
    pixel = register pixelInit (prlx <$> (_counter <$> v) <*> (_timer <$> v))
    pixelInit = 0xFF000000 :: Unsigned 32

The demo itself uses a modified version of the rrrola trick to draw an approximate geometric line for raycasting without the need to use any floating point arithmetic, which is great since I didn't really want to implement a floating point unit for a simple demo. The Clash code above is compiled to Verilog, and then synthesized and converted to a BLIF specification using Yosys.

FPGA simulator

The simulator is fully written in Rust. The simulator first takes the BLIF specification generated by Yosys as input and parses it into a model structure with each basic logic element (BLE), input signals, and output signals. A topological sort is then used to order the elements so that elements that require some signal to have been created during the current cycle will come after the element that generates that signal. I've set up a simulation loop to run on the model for some number iterations and generate the model's output signals on each cycle. In the case of the hardware description above, every cycle will output the color of the next pixel on a 320x200 screen. While the original implementation I wrote would compile the simulator to WASM and draw the pixels directly to screen, poor performance of the current implementation led me to save frame data to a file and use a second program compiled to WASM to write frame data to the screen instead.

Future Improvements

Parallelizing simulator execution using WebGL

This is the main reason why I'm stopping this project here for now. My original plan for the simulator was to implement the LUTs and registers using compute shaders so that I could take advantage of the parallel nature of hardware (similar to this problem from Google CTF Finals 2019). Unfortunately, existing graphics APIs do not make it easy to implement a locking feature on individual cores for continuing execution only when a signal they are dependent on has been generated. Also, since I want this simulator to run in a browser, I'd need to use the WebGL API, which only recently added compute shaders and only supports them in experimental builds of popular browsers. I likely won't reapproach this project until then since I wouldn't be able to show it here if I did. :(

Adding a RISC CPU on top of the abstraction

This is pretty low-hanging fruit in my opinion if I wanted to make this project even more ridiculous, as writing a RISC CPU with minimal functionality is pretty trivial. However, performance while doing nothing other than drawing a fancy demo to the screen is already so bad that dumping a RISC core on top would make even pre-rendering frames using the simulator very painful.

Adding an operating system on top of the custom RISC core

Same as above. :(

Conclusion

Working on this project was a lot of fun and a great learning experience for me. I didn't intend to spend as much time as I did getting things to work as I wanted them, but the end result was that I learned far more about Haskell, WASM, and FPGAs than I had originally intended to. Hopefully once compute shaders are stable in WebGL I can take another stab at finishing the entire abstraction.
